Wireless Access Points
Quuppa & Wearables

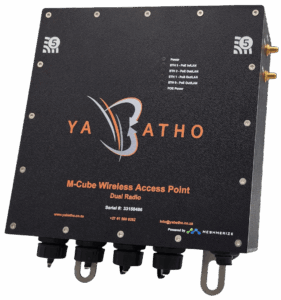

Ya Batho’s M-Cube Access Points are designed to support 802.11ac and 1GB fast ethernet for high-power access point, hotspot and repeater applications. The M-Cube platform is available in single or dual radio configuration and supports MIMO 2.4 GHz or 5.8 GHz combination radio cards. The M-Cube Access Point with the smallest form factor in the industry can be installed with ease to facilitate uninterrupted communication.
The reliability and survivability of conventional communications systems in harsh mining environments has always been a problem till now. Ya Batho’s Integrated Access Point has been designed to be used within the production areas and to be installed onto TMM’s thanks to its small form factor despite being intrinsically safe. The Integrated Access Points have been designed specifically to facilitate machine automation and control in underground mining operations. The platform operates at 2.4 GHz and 5.8 GHz and is capable of carrying of real time machine tracking and delivering real time health and production data from the machine.
The wireless extender is a temporary solution to provide wireless connectivity in areas that do not have infrastructure such as power or fibre optic cable. Facilitates RTLS and phone calls in the madala sites or areas that require connectivity whilst work is being carried out.

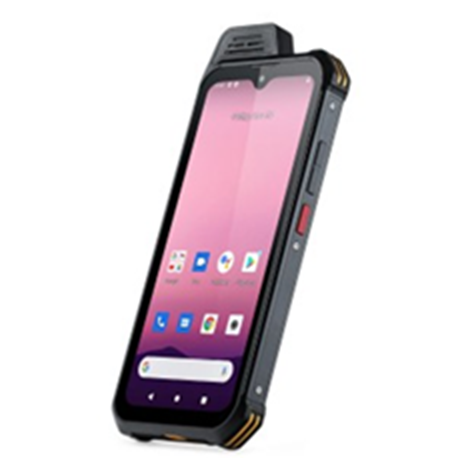

M5.5 Android Smartphone is a unique ultra-rugged smartphone that has been designed for the harshest of mining environments. The M5.5 offers powerful connectivity features and a long-lasting battery, combined with its IP68 rating, the M5.5 smartphone will never let you down. The M5.5 Android Smartphone has been designed to be comfortable in the hand and to easily grip it.
M-Phone SIP 2.0 digital hand-held phone is a high-performance, industrial grade Wi-Fi phone, designed specifically for underground mining environments. The M-Phone uses the Open Standard “SIP” to set up and manage phone calls. The lightweight, ruggedised construction is IP-54 rated, explosion proof and includes dust screening and shock proofing, and can be used in extreme temperatures. The M-Phone supports “Push-to-Talk” and “One Touch SOS” functions as well as “Offline Communication” which can be used when no network infrastructure exists.

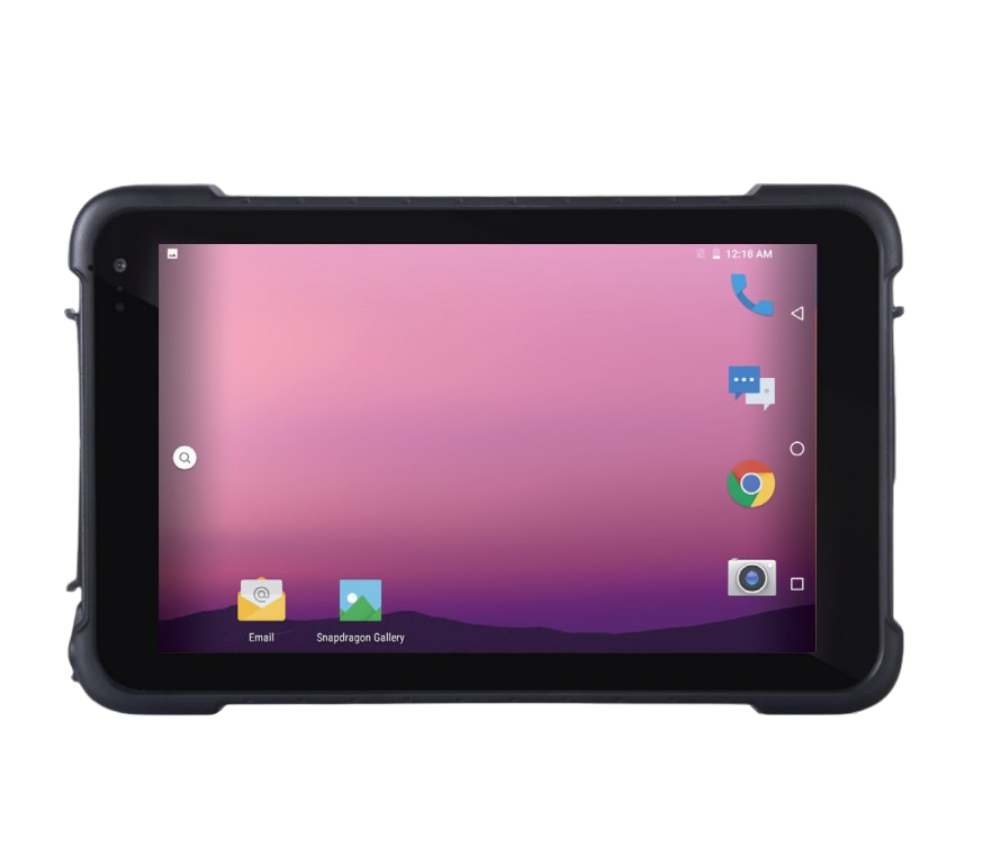

M-Tab 8 Inch Android tablets ruggedized construction is certified Ex (ia) and is IP-67 rated and can be used in section and with confidence in the harshest of mining environments. Comes with Android 8.1 operating system. Mine employees are now able to connect to the corporate network in section and make calls from the production face to keep the respective departments informed and, in a position, to make proactive decisions.

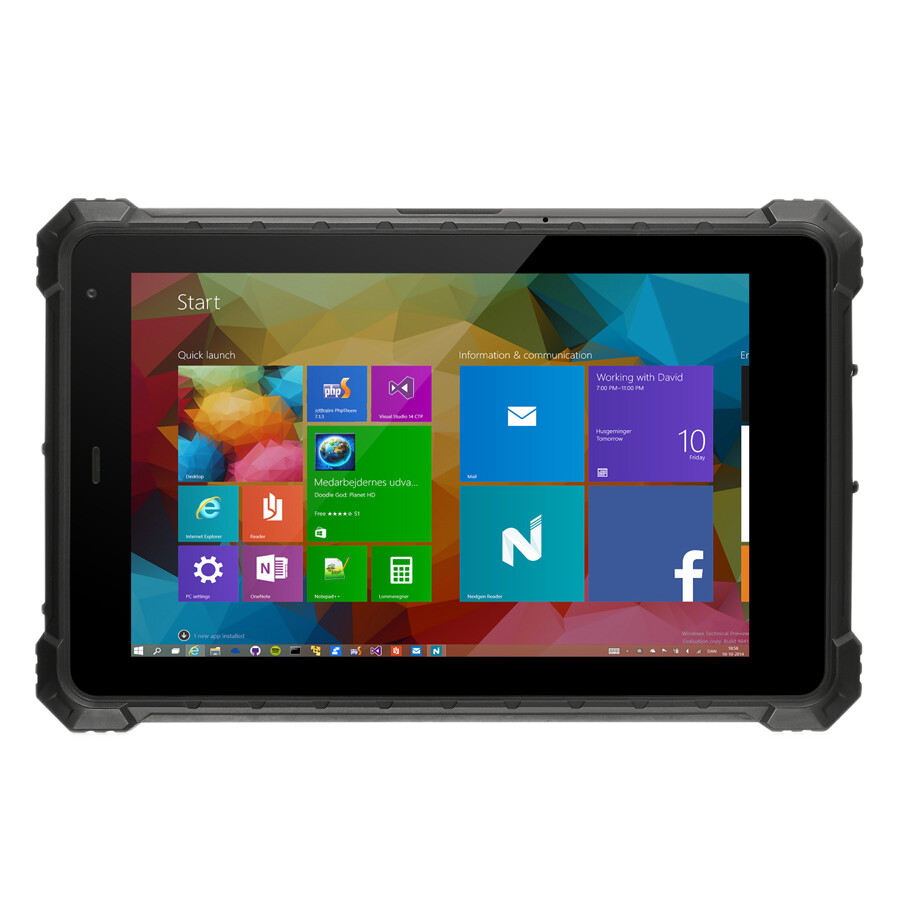

M-Tab 8 Inch Windows tablets ruggedized construction is certified Ex (ia) and is IP-67 rated and can be used in section and with confidence in the harshest of mining environments. Comes with Windows 10 Professional operating system. Mine employees are now able to connect to the corporate network in section and make calls from the production face to keep the respective departments informed and, in a position, to make proactive decisions.

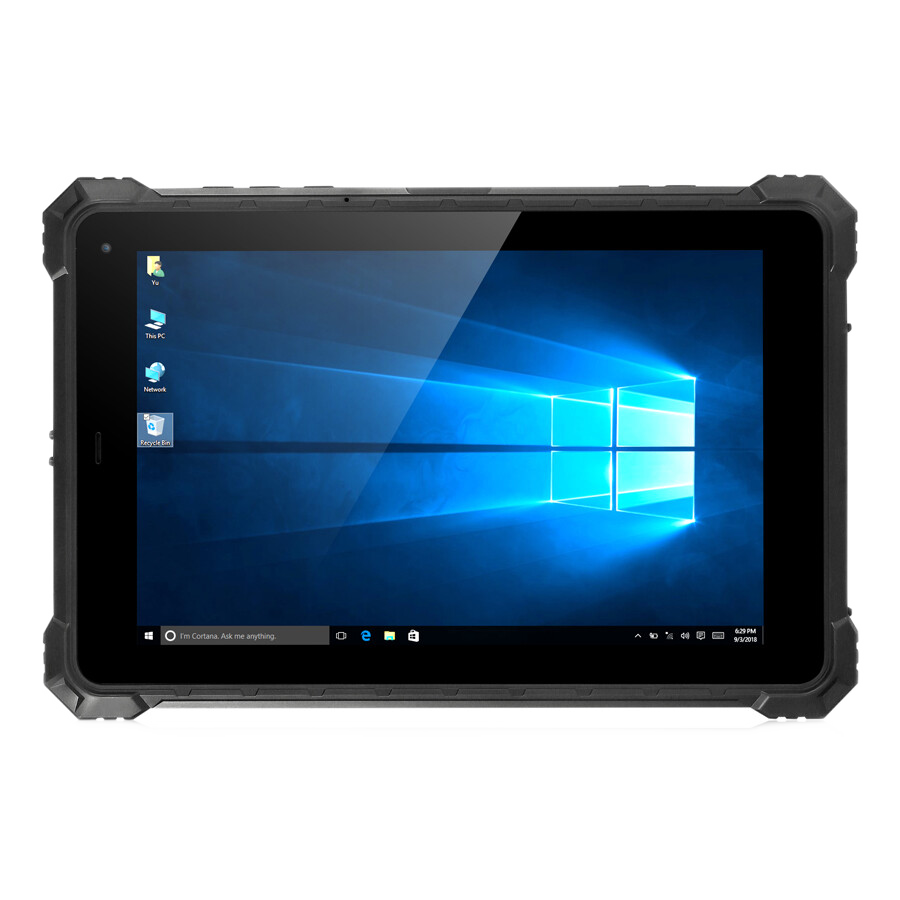

M-Tab 10 Inch Windows tablet is a high-performance, rugged Windows tablet, designed specifically for harsh working conditions. The lightweight, ruggedized construction is IP-65 rated. Comes with Windows 10 Professional operating system. Contractor’s and mine employees can complete job cards and submit work orders online in real time.

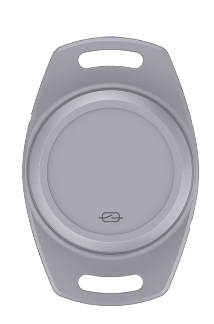

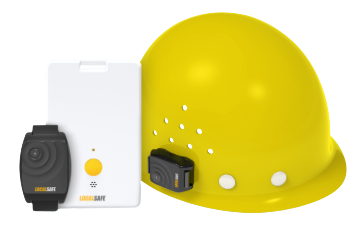

The Quuppa Intelligent Locating System allows you to locate any objects equipped with Quuppa Tags in an environment equipped with Quuppa Locators. Tags have a battery life of between 2 and four years and allows for two-way communication, enabling alerts to be sent to workers underground. Cames with an has an offline mode which enables use even in emergencies when connectivity is limited.

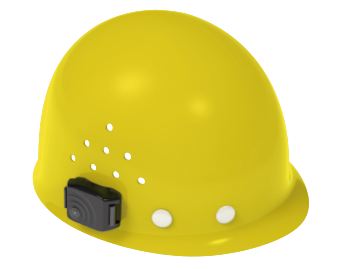

The right information at the right time and the right location enables an excellent opportunity for the mining industry to make their decisions faster than ever. For mining applications such as Shaft Clearance, Blast Clearance, Woman in Mining and Personnel-in-Distress are some of the capabilities that can be achieved with the Quuppa Intelligent Locating System and BLE Ex (ia) wearable
Location-based Bluetooth solutions powered by Quuppa, the world leader in advanced location systems with a higher level of location accuracy. It works even in confined tunnels due to map matching.
Quuppa enables positioning accuracy down to 1m (conditions dependant), provides real-time location updates even for the fastest moving objects, and is reliable also in the most challenging environments. Quuppa can locate both smartphones and tags – whether you need pinpoint positioning, proximity, or just presence detection – and offers connectivity for IoT sensors at the same time. Run the OS independent software locally or in the cloud, and integrate through standard, open API.
32 Inch Ex (ia) Android touchscreen that can be used in the production areas to relay information and conduct Toolbox Talks and safety information can be shared amongst employees. The touchscreen can be used to access other computers on te network and logon to the corporate network whilst underground to place parts orders and flag repairs. The 32″ Android is a powerful tool and can be easily mounted within the waiting area or in section.
An IP67 Rated computer running Windows 10 Professional with a touch interface. The ability to wash this touchscreen computer using a pressure cleaner makes this the ideal computer to use in your workshops.
Provides concise monitoring of the driver’s concentration levels, detecting driver fatigue or distraction and warns the driver of potential careless driving. The camera’s normal working conditions are not aﬀected by external light sources.
IP67 Side view 75-degree HD Camera
7” Screen Display with a 180-degree wide viewing angle.
720P AHD High Resolution, Explosion Proof Camera suitable for TMM’s and LDV’s.
Extra wide 130 degree viewing angle that records driver and passenger image simultaneously.
The MDVR has been designed for the challenging environment as comes with vibration protection.
